The HaulerBiner Compact Rescue Kit is a lightweight, compact and simple to use/deploy device. The HaulerBiner is fully rated for lifting people.
The ISC HaulerBiner has three pulley wheels incorporated into each Carabiner, creating a compact and lightweight 6:1 or 7:1 (theoretical) Mechanical Advantage system. The HaulerBiner also has a purpose-designed progress capture cam with, an ‘on/off’ position.
The HaulerBiner utilizes purpose-developed 6mm (1/4") rope, for strength and easy handling/best grip. The kit is supplied in a two-pouch bag, for easy deployment.
The HaulerBiner is load rated to 140kg (310lbs) but it has an MBS of at least 16kN/3500lbs tested as a complete system.

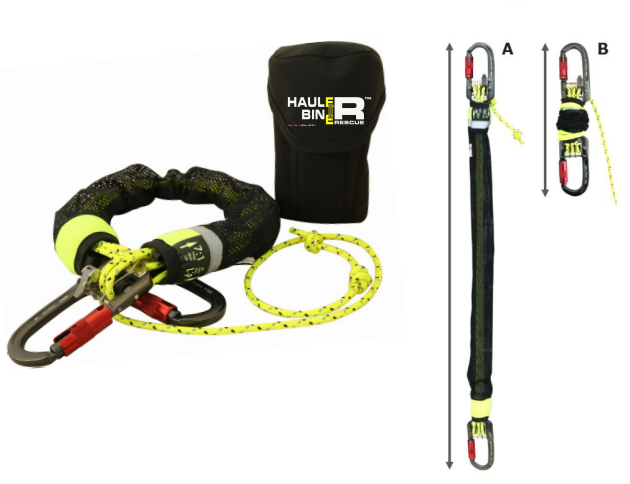

The length of the 105cm (3'5") Kit system, when fully contracted,is only 32cm (12")!
The HaulerBiner can be used in a number of ways:
- As part of a pick-off system
- On a structure, pull down on the system and achieve a 6:1 (theoretical) MA
- When suspended in a harness, pull up on the system and achieve a 7:1(theoretical) MA
- With a descender, as part of a short-haul / long-lower system
- As a tensioning system for short/low load lines
Technical Information
Length (fully extended) Maximum 1.05m (43”)
Length (fully contracted) 32cm (12”)
Mechanical Advantage 6:1 or 7:1
Weight (packed in pouch) 575g (1.2lb)
Rated Load 140kg (308lb)
Rope Size 6mm (1/4”)
Body Material Aluminium (Anodised)
Gate Type Supersafe (Triple -lock)
MBS 16kN (3596lbf)
Standards Meets EN12278, EN567
